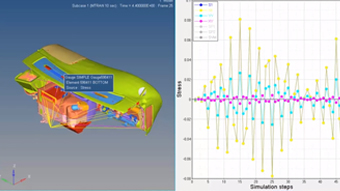

Correlation between CAE and tests results is very strategic activity. It boosts the confidence in the development of the product. Altair’s Virtual Gauge Director (VGD) is a combination of customized software and services that enable engineers to extract the results at the exact position of the strain gauge as in the test lab, interpolate the results at an identified CAE location, compute results in the local coordinate system of the gauge, and give a correlation index confidence. The Director can also be used to interpolate stress or strain values at any placement in the model.
